HOltek

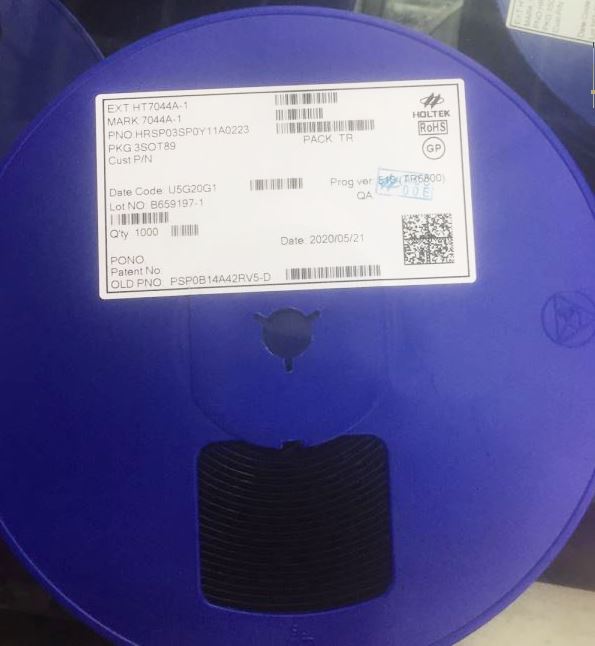

HT7044A-1

1000pcs/reel
UNit Price:0.078usd/pcs
DC：within 2 years
MOQ:100pcs
Product description: HT7044A-1，SOT89-3，Holtek ，TinyPower Voltage Detector
INQUIRY

General Description
The HT70xxA-1 series devices area set of three terminal low power voltage detectors implemented in CMOS technology. Each voltage detector in the series detects a particular fixed voltage ranging from 2.2V to 8.2V. The voltage detectors consist of a high-precision
and low power consumption standard voltage source as well as a comparator, hysteresis circuit, and an output driver. CMOS technology ensures low power consumption.

Although designed primarily as fixed voltage detectors, these devices can be used with external components to detect user specified threshold voltages.

Features
• Low power consumption
• Low temperature coefficient
• High input voltage range (up to 30V)
• Quiescent current 3μA
• Output voltage accuracy: tolerance ±3%
• Built-in hysteresis characteristic
• 3-pin TO92, 3-pin SOT89, 3-pin SOT23 and
5-pin SOT23 package

Applications
• Battery checkers
• Level selectors
• Power failure detectors
• Microcomputer reset
• Battery memory backup
• Non-volatile RAM signal storage protectors

datasheet click in here
