• Optional Chip Feature Configuration Schemes

On-Line Registers Configuration

Off-Line EEPROM Programming

• Frequency Range: 240 to 960 MHz
• FSK, GFSK and OOK Modulation
• Symbol Rate:

• Deviation: 1.0 to 200 kHz
• Two-wire Interface for Registers Accessing and EEPROM Programming
• Output Power: -10 to +13 dBm
• Supply Voltage: 1.8 to 3.6 V
• Sleep Current: < 20 nA
• FCC/ETSI Compliant
• RoHS Compliant
• 6-pin SOT23-6 Package

• Low-Cost Consumer Electronics Applications
• Home and Building Automation
• Remote Fan Controllers
• Infrared Transmitter Replacements
• Industrial Monitoring and Controls
• Remote Lighting Control
• Wireless Alarm and Security Systems
• Remote Keyless Entry (RKE)

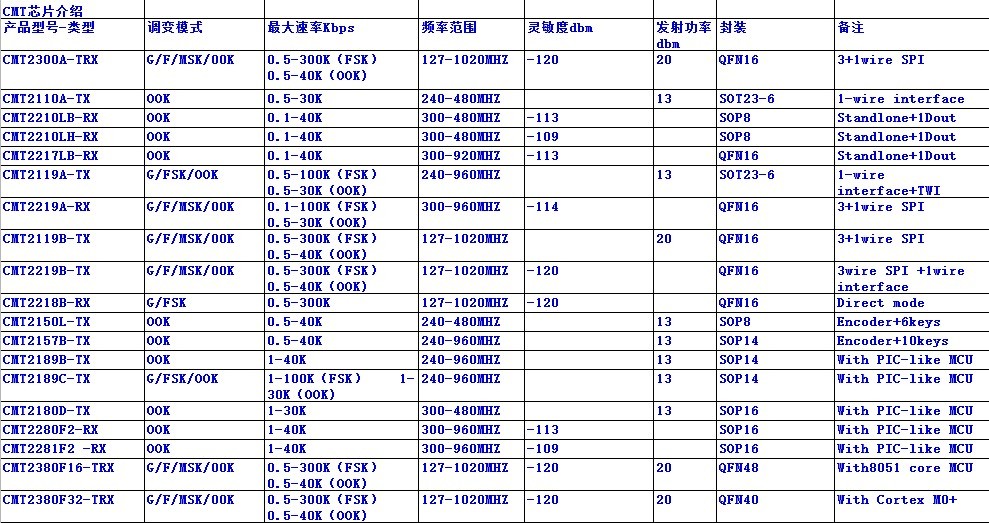

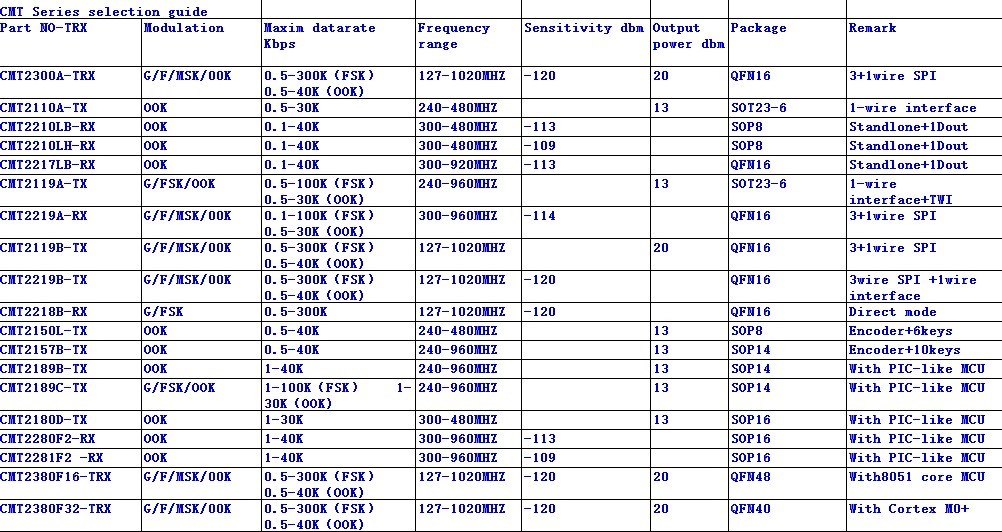

The CMT2119A is a high performance, highly flexible,low-cost, single-chip (G)FSK/OOK transmitter for various 240 to 960 MHz wireless applications. It is a part of the CMOSTEK NextGenRFTM family, which includes a complete line of transmitters,receivers and transceivers. The CMT2119A provides the simplest way to control the data transmission. The transmission is started when an effective level turnover is detected on the DATA pin, while the transmission action will stop after the DATA pin holding level low for a defined time window, or after a two-wire interface (TWI) command is issued. The chip features can be configured in two different ways: setting the configuration registers through the TWI, or programming the embedded EEPROM with CMOSTEK USB Programmer and the RFPDK. The device operates from a supply voltage of 1.8 Vto 3.6 V, consumes 27.6 mA (FSK @ 868.35 MHz) when transmitting +10 dBm output power, and only leak 20 nA when it is in sleep state. The CMT2119A transmitter together with the CMT2219A receiver enables a robust RF Link .

CMT2119A  files link： click link
CMT2119 Module-RFM119 files link ： download files
